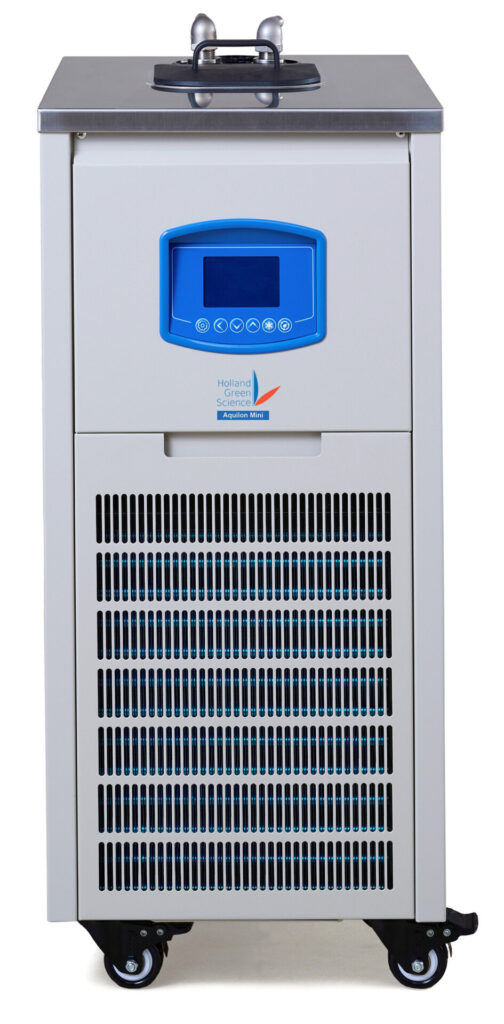

The Aquilon Mini recirculating chiller features PID temperature controllers to provide accurate and reliable temperature control. Aqualon Mini with a cooling capacity of 800W designed for continuous and reliable operation.
| User_Manual_Aquilon_Mini |  |
Product Description
General information about the Aquilon Mini recirculating chiller:
This recirculating chiller features PID temperature controllers to provide accurate and reliable temperature control.
Designed for continuous and reliable operation. This Aquilon Mini 600W recirculating chiller with a cooling capacity of 800W is perfect to to shorten process times and boost solvent recovery rates.
This recirculating chiller is part of our rotary evaporator economy pack to insure perfect cooling for the proces.
Features & Benefits:
- PID temperature controller provides accurate and reliable temperature control for stability up to ± 0.2 °C
- Designed for continuous operation
- DC driven pump for low noise and benchmark reliability
- Powerful and fast cooling fluid circulation for rapid cooling power delivery
- Timer setting
Safety:
- CE Certified
- Temperature deviation alarm
- Overcurrent and overheat protection
- Independent circulating pump switch
Perhaps your looking for a different capacity chiller click here
Product Name |
Aquilon Mini |
| Power Specification | 230V 50Hz 1ph – 600W |
| Temp Range ℃ | -2 0℃ – 20 ℃ |
| Temp Accuracy ±℃ | ±2 ℃ |
| Power (Watt) | 600W |
| Cooling Capacity | 800W 10℃ |
| Maximum Pressure of Circulating Pump (bar) | 0.9 bar |
| Maximum Flow Rate of Circulating Pump (Liter / min） | 6 L/min |
| Volume / Capacity（Liter) | 5.2 Liter |
| Size（mm） | 315×455×570 |
| SKU Number | 20303001 |
