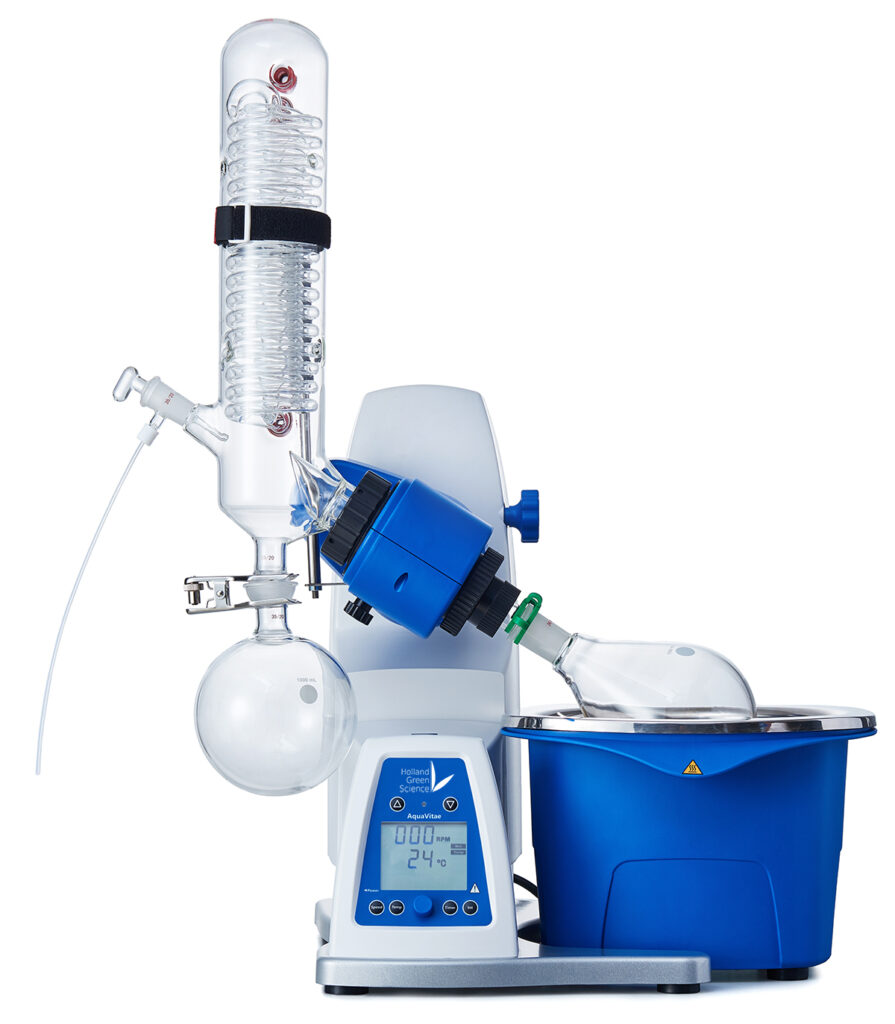

This Aqua Vitae 2liter digital rotary evaporator is a benchtop rotary evaporator System and is an essential tool for the efficient and gentle evaporative removal of solvents such as ethanol from winterised crude oil.
| User_Manual_Aqua_Vitae |  |
Product Description
General information about the Aqua Vitae digital rotary evaporator:
This Benchtop rotary evaporator system is called the Aqua Vitae digital rotary evaporator and is an essential tool for the efficient and gentle evaporative removal of solvents such as ethanol from winterised crude oil.
The system is highly efficient and easy to use. The bath temperature of up to 180°C covers all common solvents and even allows for in-evaporator decarboxylation if required.
This rotary evaporator system is also available as a package including an chiller and vacuum pump that are perfectly aligned and that set is called the Aqua Vitae Rotary Evaporator Economy Pack
Features & Benefits:
- Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
- 5L heating bath with a wide temperature range from room temp. to 180°C with water/oil heating mode
- Speed range of 20 to 280 rpm with clockwise and anti-clockwise rotation
- Patented condenser (cooling surface 1,700 cm2) with excellent cooling thus solvent recovery performance
- Flask release mechanism ensures easy removal of evaporating flask
- Patented double spring sealing ring made of PTFE provides excellent sealing performance
- Remote control function via PC control including data transmission
Safety:
- CE and TUV Certified
- Safety coated glassware to protect users in case of glass breakage
- Temperature overheat protection at 220°C
- Run-dry protection, automatically powers off if operating without any water/oil in the heating bath
- Automatic motor lift releases the evaporating flask to a safe position in case of power failure
Product Name |
Aqua Vitae 2L |
| Evaporation Flask Volume | 2 litres |
| Power Specification | 220-240V 50Hz/60Hz 1ph – 1400W |
| Motor Type | Brushless DC Motor |
| Speed Range | 20-280 rpm |
| Display | LCD (speed, temperature, time) |
| Clockwise and Anti-Clockwise | Yes |
| Heating Temperature Range | ambient. to 180 ℃ |
| Control Accuracy | water: ±1 ℃ oil: ±3 ℃ |
| Heating Power | 1300W |
| Timer | Yes |
| Time Setting Range | 1 -99 min |
| Dimension[D×W×H] | 465 × 457 × 583 mm |
| Weight | 19,44 kg |
| Permissible Ambient Temperature | 5 – 40 ℃ |
| Permissible Relative Humidity | 80% RH |
| USB Interface | Yes |
| SKU Number | 20206003 |
