This benchtop freeze dryer has a large capacity for product, allowing you to speed up your processing times without taking up too much space. It’s a is a versatile and user-friendly “tray freeze dryer”.
Easily exchangeable shelves stack (3, 5, 7 up to to 9 shelves (to your preference) Video how to chance the tray stacks
This machine offers comprehensive management of your freeze drying procedure. It features both manual and automatic operating modes, allowing for simple programming with as many as 16 different steps to tailor your drying recipes.
If you want contact for purchasing the Xiros Mikro freeze dryer,
Also see ar blog about freeze drying:
Drying without the loss of valuable properties

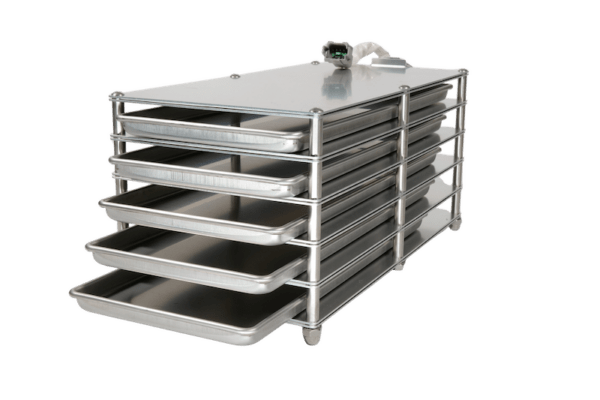

Also see: The Xiros Mikro comes standard with a interchangeable 5 heated stainless steal Shelf Stack. This 5 schelf setup is easily chanced in to a 3, 7 or 9 shelf freeze dryer, it's plug and play. Any of these interchangeable shelf stacks provides you with a high-capacity and space-saving solution for your freeze drying needs. These stacks are easily interchangeable with one plug outlet at the back of the [...]
| Xiros_Mikro_brochure |  |
| Xiros_Mikro_usermanual | |
Product Description
The Xiros Mikro model has an impressive 8 kg ice capacity, capable of extracting up to 4 kg of ice from the product in a single day. It standard comes equipped with 5 electrically heated shelve stack and 5 high quality stainless steel trays, all included as part of the standard package, when buying your Xiros Mikro freeze dryer.
You can easily interchange the shelf stack and go up to a 9 shelves shelf stack, easily plug-and-play chance of any shelf stack.
We recommend using a scroll dry (oil free) vacuum pump with your Xiros Mikro Freeze Dryer. Very low maintenance and quiet operations are just a few of the many benefits of a scroll dry vacuum pump.
To optimize your pre-freezing process and maintain perfect control over this first step in your freeze-drying process, we recommend using our specially build Preseva -25º Plus (21 Shelves) Freezer.
Xiros Mikro Installation Manual
Send download link to:
General information about the Xiros Mikro freeze dryer:
This benchtop freeze dryer has a large capacity for a wide rance of product, allowing you to speed up your processing times without taking up too much space. It’s a is a versatile and user-friendly “tray freeze dryer”.
This machine offers comprehensive management of your freeze drying procedure. It features both manual and automatic operating modes, allowing for simple programming with as many as 16 different steps to tailor your drying recipes.
The Xiros Mikro model has an impressive 8 kg ice capacity, capable of extracting up to 4 kg of ice from the product in a single day. It standard comes equipped with a 5 electrically heated shelve stack and 5 high quality stainless steel trays, all included as part of the standard package, when buying your Xiros Mikro freeze dryer.
You can easily interchange the shelf stack and go up to a 9 tray’s shelve stack, easily plug-and-play chance of any shelf-stack that will fit your production needs.
We recommend using a scroll dry (oil free) vacuum pump with your Xiros Mikro Freeze Dryer. Very low maintenance and quiet operations are just a few of the many benefits of a scroll dry vacuum pump.
To optimize your pre-freezing process and maintain perfect control over this first step in your freeze-drying process, we recommend using our specially build Preseva -25º Plus (21 Shelves) Freezer.
Features & Benefits of the Xiros Mikro:
- All in one process
- Store your induvial customize recipes in one of the 4 buttons with up to 16 steps processing
- Choice of manual or automatic operation
- Market leading ice holding capacity for larger batches or longer defrost intervals
- Easy load due to low profile machine design
- Full stainless steal interior including the shelf-stack and tray sets
- Easily exchangeable shelves stack (3, 5, 7 up to to 9 shelves (to your preference) Video how to chance the tray stacks
- Designed to run 24 hours 7 day’s a week perfect for running as a production machine
- High-quality vacuum technology fittings and connectors used (made for this process, and up to the task)
- Commercial Grade 2 Year Warranty
- Defrost Function by shelf heating
- High quality and performance components from leading suppliers
- Controllable vacuum valve (closing of the chamber from vacuum pump)
- CE certified
Specifications of the Xiros Mikro:
- 3, 5, 7 up to to 9 shelves (adaptable to your needs) shelf stack.
- Ice Condenser Volume of 11 Liter
- Ice Condenser Capacity is 8 Kilo grams
- Ice Condenser Performance is 4 Kilo grams in 24 hours
- Ice condenser Temperature -40 °C
- Minimum Shelf Temperature for Freezing -35 °C
- Maximum Shelf Temperature for Drying +60 °C
- Shelf Temperature Accuracy +/- 3 °C
- Typical Product Capacity is 9.6 kg at 80% moisture content
- Ultimate Vacuum of 1.5 x 10-1 mbar
- Maximum Vacuum Pump Current is 3A
- Refrigerant used is R290 (a environment friendly coolant)
- Noise Level (without vacuum pump) is 54 dB(A)

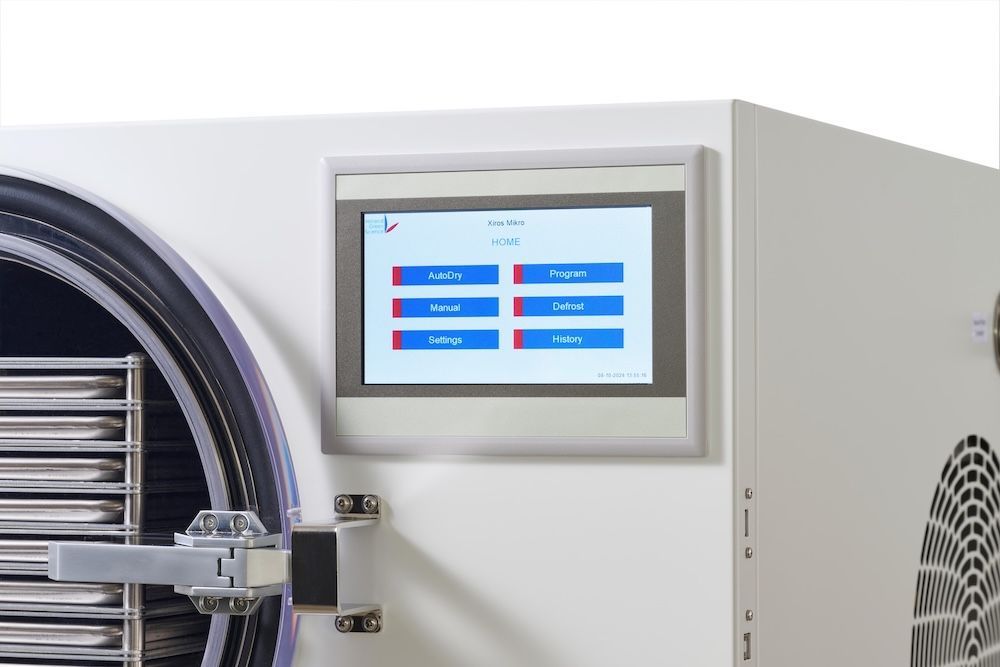

Controller of the Xiros Mikro:
- Interfaces USB, RS232C
- 5” colour touchscreen
- Programmable to suit specific applications e.g. to reduce the loss of terpenes
- Manual Operation options
- Automatic drying cycle
- USB connectivity for software upgrades and data logging
Technical details
| Product name | Xiros Mikro |
| External Dimensions | 74,8 cm (wide) 77 (depth) and 50,7 cm (height) |
| Weight | 87 kilogram |
| M2 tray space (depending of tray assembly) | from 0,27 M2 up to 0,8 M2 |
| Tray Size | up to 9 shelf = 200 x 450 x 15 mm |
| Inter shelf distance per shelf stack | 3 shelves = 68 mm
5 shelves = 40 mm 7 shelves = 28 mm 9 shelves = 19 mm |
| Electrical | 230V +/-15% 50Hz 8.5A without pump, 11.5A with pump (model dependent) |
| SKU Number | 20107002 |
