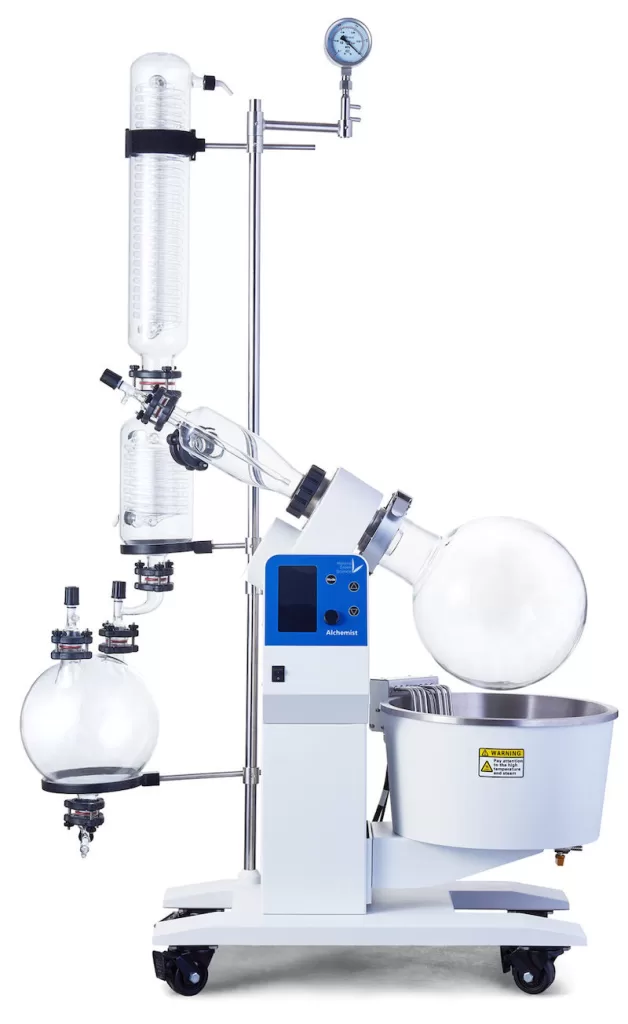

Alchemist large rotary evaporator

Alchemist Rotary evaporator
Alchemist Rotary evaporator side

The Alchemist production rotary evaporator is used whenever benchtop system capacity is no longer sufficient. Featuring a large capacity 20 Liter evaporation flask. capacity: 4L/h Water or 11L/h Ethanol.

Product Description

General information about the Alchemist large Rotary Evaporator:

The Alchemist production rotary evaporator is used whenever benchtop system capacity is no longer sufficient. Featuring a large capacity 20 Liter evaporation flask and capable of evaporating 4 Liters per Hour water and 11Liter per Hour of ethanol.

The in-process product feed and waste discharge valve system allow for continuous distillation. Our PID controller enables accurate process control and is extremely easy to use. The bath temperature of up to 180℃ covers all common solvents and even allows for in-evaporator decarboxylation if required.

We also offer this large rotary evaporator in a pack.

Features & Benefits:

  • Continuous evaporation possible thanks to in-process feed and drain setup
  • Large digital LCD display with bath temperature, rotation speed, rotation direction and time
  • One-click automatic motor lift
  • Water/oil heating bath with wide temperature range from ambient to 180 °C
  • Flask speed range from 10 to 150 rpm with interval operation and rotation direction select
  • Double-layer high-efficiency condenser with large condensation area for high evaporation performance and solvent recovery rates
  • Patented PTFE double sealing vapor tube seal with excellent performance

Safety:

  • CE Certified
  • Safety coated glassware to protect users in case of glass breakage
  • Temperature overheat protection at 220 °C
  • Run-dry protection, automatically powers off if operating without any water/oil in the heating bath
  • Automatic motor lift releases the evaporating flask to a safe position in case of power failure



Product Name Alchemist
Power Specification 220V 50/60Hz 1ph – 4600W
Size 20 Liter
Temperature Range ambient to 180 ℃ ( water and oil mode)
Temperature Control Accuracy  Water: ± 1 ℃

Oil: ± 3 ℃

Rotation Speed  10 – 150 rpm
Evaporation Performance max. 4.0 L/h for water, 11 L/h for ethanol
Ultimate Vacuum  < 2.6 mbar
Temperature Control Method Microprocessor PID Control
Display LCD

temperature / flask rotation speed / flask rotation direction / time

Safety Features Motor Overcurrent Protection, Residual Current Device,
Lifting Overload Protection, Boil-dry Protection,
Over-Temperature Protection
Sample Flask Round flask 20L
Receiving Flask Round Flask 10L with Drain Valve
Condenser Two-Section Vertical Triple Serpentine Condenser,
Cooling Surface 1.2m2
Heating Bath Size φ 450×240mm
Connectors Cooling /Suction Nozzle Outer Diameter 10mm,
Vacuum Pump nozzle outer diameter 10mm
Dimension [D×W×H] 1160mm×600mm×1860mm
SKU Number 20206001
